ExplorIR® Serie

ExlorIR®-W

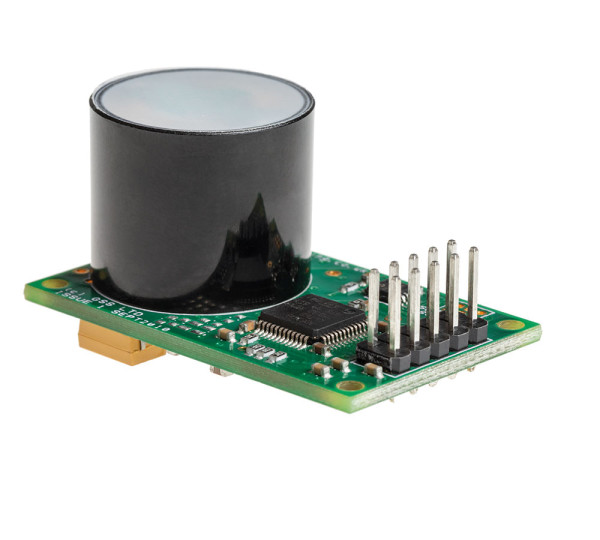

Flexible, small form-factor CO2 sensor.

The ExplorIR®-W is a small footprint low power CO2 sensor designed for applications where space is at a premium. The combination of small size, low power and high accuracy makes this sensor suitable for portable, battery powered personal safety equipment.

The ExplorIR®-W has a very wide dynamic range and is capable of measuring CO2 gas concentrations... mehr
Produktinformationen "ExlorIR®-W"

The ExplorIR®-W has a very wide dynamic range and is capable of measuring CO2 gas concentrations up to 100%, without compromising measurement accuracy or responsiveness. The ExplorIR®-W uses patented NDIR solid-state LED optical technology that delivers consistent and accurate CO2 measurement performance over the lifetime of the sensor.



Spezifikation

Co2 Sensor Specifications

Measurement Ranges

0-5%, 0-20%, 0-60%, 0-100%

Accuracy (typ.)

0-60%   ±(70ppm +5% of reading)

0-100%±(300ppm +5% of reading)

Time to 1st Reading

<1.2 seconds

Response Time

<30 Seconds (Diffusion limited)

Readings per Second

2

Sample Method

Solid-state LED NDIR Diusion



Electrical and Mechanical Specifications

Measurement Output

UART

Supply Voltage

3.25V - 5.5V

Power Consumption (typ.)

3.5mW @ 3.3V

Dimensions and Weight

40mm x 25mm x 23mm, 8g



Operating Conditions

Operating Conditions – Temperature

0°C to 50°C (Standard)

-25°C to 55°C (Extended)

Operating Conditions – Humidity

0-95% RH, non-condensing

Storage Conditions – Temperature

-40°C to +70°C

Pressure Dependence

500mbar - 10bar

Sensor Lifetime

>15 years

Environmental Compliance

RoHS and REACH
